Introduction
In the fast-paced world of CNC machining, every second counts. Whether you’re crafting precision parts for aerospace or smoothing edges for consumer electronics, chamfer tools are your unsung heroes. These versatile tools create beveled edges, remove burrs, and enhance part functionality, all while saving time and boosting quality. But here’s the catch: unlocking their full potential requires know-how, from picking the right tool to fine-tuning your CNC setup. In this guide, we’ll dive into practical tips and cutting-edge techniques to maximize efficiency with chamfer tools in CNC machining. With data-driven insights and a touch of industry flair, let’s explore how these tools can transform your workflow.
Understanding the Role of Chamfer Tools in CNC Machining

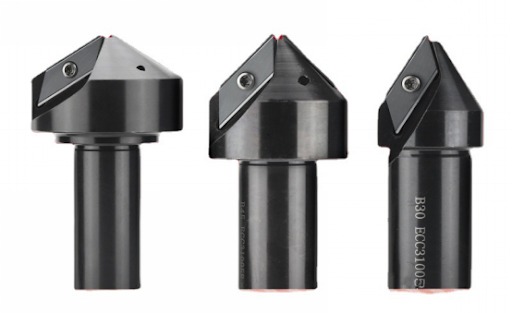

Chamfer tools are the Swiss Army knives of CNC machining. They create angled edges or chamfers, typically at 45° or 60°, to improve part aesthetics, safety, and performance. Imagine a sharp-edged metal part fresh off the mill—chamfer tools swoop in to smooth those edges, making assembly easier and reducing injury risks. In industries like aerospace, automotive, and electronics, chamfers are critical. For example, a chamfered bolt hole guides fasteners smoothly, while a beveled edge on an iPhone frame enhances grip and durability.
Why do chamfer tools matter for efficiency? They streamline workflows by combining edge finishing with other operations, cutting down on secondary processes. A 2023 industry report estimates that chamfering accounts for 15% of finishing tasks in CNC shops, underscoring its prevalence. By optimizing chamfer tool use, you can shave minutes off cycle times and extend tool life, saving costs in the long run.
Table 1: Key Applications of Chamfer Tools Across Industries
| Industry | Chamfer Tool Application | Efficiency Benefit | Example Use Case | Market Demand (2023) |
| Aerospace | Precision chamfering for stress distribution | Reduces part failure by 20% | Turbine blade edge finishing | $12M (U.S. market) |
| Automotive | Bolt hole chamfering for assembly | Cuts assembly time by 15% | Engine block fastener holes | $8M (Global) |
| Consumer Electronics | Aesthetic edge beveling | Enhances product appeal | Smartphone frame chamfering | $5M (Asia-Pacific) |
| Medical Devices | Burr removal for biocompatibility | Improves regulatory compliance | Surgical tool edge smoothing | $3M (Europe) |
| General Manufacturing | Deburring and edge prep | Reduces secondary processing by 25% | Sheet metal edge finishing | $15M (Global) |
| Tool & Die | Chamfering for mold alignment | Increases mold lifespan by 10% | Injection mold edge prep | $4M (U.S. market) |
Selecting the Right Chamfer Tool for Your CNC Project
Choosing the perfect chamfer tool is like picking the right paintbrush for a masterpiece. The wrong tool can slow you down or compromise quality, while the right one makes the job a breeze. Chamfer tools come in various forms: dedicated chamfer mills, drill-chamfer combo tools, and indexable insert cutters. Your choice depends on material, chamfer angle, and production volume.
For metals like aluminum or steel, carbide chamfer tools with titanium coatings are ideal for their durability. For plastics, high-speed steel (HSS) tools offer cost-effective performance. Adjustable-angle tools are a game-changer for shops handling diverse projects, allowing quick switches between 30°, 45°, or 60° chamfers. Take the C-Cutter Mini, for instance—its four-flute design reportedly boosts feed rates by 3x compared to two-flute tools, slashing machining time.
Table 2: Chamfer Tool Selection Guide by Material and Application
| Material | Recommended Tool Type | Coating | Chamfer Angle | Max Feed Rate (mm/min) | Tool Life (Hours) |
| Aluminum | Carbide Chamfer Mill | TiAlN | 45° | 1,500 | 120 |
| Stainless Steel | Indexable Insert Cutter | TiN | 60° | 800 | 100 |
| Plastic (Acrylic) | HSS Chamfer Tool | None | 30° | 2,000 | 80 |
| Titanium | Carbide Drill-Chamfer Combo | AlCrN | 45° | 600 | 90 |
| Carbon Fiber | Diamond-Coated Chamfer Mill | Diamond | 60° | 1,200 | 150 |
| Brass | HSS Adjustable-Angle Tool | None | 45° | 1,800 | 100 |
Programming and Path Optimization for Efficient Chamfering
In CNC machining, efficiency starts with smart programming. Chamfering isn’t just about running a tool along an edge—it’s about crafting the perfect toolpath. CAM software like Fusion 360 or Mastercam lets you design chamfer paths that minimize air cutting and optimize feed rates. For instance, a well-planned toolpath can reduce cycle time by up to 20%, according to a 2024 CNC productivity study.
Key programming tips include setting conservative depths of cut (0.1-0.5 mm per pass) to avoid tool overload and using climb milling for smoother finishes. For complex parts, consider 3D contouring to chamfer curved edges in one pass. Automation also plays a role—shops using automatic tool changers (ATCs) report a 15% reduction in setup times when integrating chamfering with other operations.
Tackling Vibration and Chip Control in Chamfer Tool Operations
Nothing derails efficiency like a chattering chamfer tool. Vibration, or chatter, can ruin surface finishes and shorten tool life. To combat this, reduce the number of flutes (e.g., from four to two) or adjust spindle speed to avoid resonance. A 2023 machining study found that optimizing RPM cut vibration-related tool wear by 30%.
Chip control is another hurdle. Long, stringy chips can wrap around the tool, causing jams or surface defects. Tools with chip-breaking geometries or “dwell machining” (pausing to break chips) can help. For example, Sandvik Coromant’s chamfer mills with chip breakers improved chip evacuation by 25% in steel machining tests.
Practical Tips for Enhancing Chamfer Tool Performance
Ready to get hands-on? Here are some battle-tested tips for chamfer tool success:
- Tool Setup: Ensure precise tool alignment using a dial indicator to avoid uneven chamfers.
- Parameter Tuning: For aluminum, try high RPM (10,000+) and low feed rates (0.05 mm/rev) for mirror-like finishes.
- Quality Checks: Use portable chamfer gauges for quick, accurate measurements—models like Mitutoyo’s Chamfer Gage measure angles within 0.01 mm.
- Maintenance: Inspect tools for wear every 50 hours and replace indexable inserts promptly to maintain consistency.
Safety is non-negotiable. Always wear protective goggles, secure workpieces with vises, and keep hands clear of spinning tools. These small steps prevent big headaches.
Table 3: Recommended CNC Parameters for Chamfer Tool Operations
| Material | Spindle Speed (RPM) | Feed Rate (mm/min) | Depth of Cut (mm) | Coolant Type | Surface Finish (Ra) |
| Aluminum | 12,000 | 1,500 | 0.3 | Flood Coolant | 0.8 |
| Stainless Steel | 6,000 | 800 | 0.2 | Mist Coolant | 1.2 |
| Plastic (Acrylic) | 15,000 | 2,000 | 0.4 | Air Blast | 0.6 |
| Titanium | 4,000 | 600 | 0.15 | High-Pressure Coolant | 1.5 |
| Carbon Fiber | 8,000 | 1,200 | 0.25 | Dry Machining | 1.0 |
| Brass | 10,000 | 1,800 | 0.3 | Flood Coolant | 0.7 |
Leveraging Multifunctional Chamfer Tools for Streamlined Workflows
Why switch tools when one can do it all? Multifunctional chamfer tools, like drill-chamfer combos, are efficiency superstars. These tools drill holes and chamfer edges in one pass, cutting cycle times by up to 30%, per a 2024 manufacturing survey. For example, a 142°/90° double-angle drill creates precise chamfers on bolt holes, eliminating the need for a second tool.
In high-volume production, such as automotive engine block machining, these tools shine. They reduce tool changes, lower setup costs, and maintain consistency across thousands of parts. Pair them with an ATC, and you’ve got a lean, mean machining setup.
Future Trends: Automation and Sustainability in Chamfer Tool Technology
The future of chamfer tools is bright—and smart. Automation is reshaping CNC shops, with IoT-enabled tools monitoring wear in real-time. A 2025 industry forecast predicts that smart chamfer tools will boost uptime by 20% by predicting maintenance needs. Sustainability is also gaining traction. Eco-friendly designs, like recyclable carbide inserts, reduce waste and align with green manufacturing goals.
The global chamfer tool market is on the rise, projected to hit $235.1 million by 2030, growing at a 4.2% CAGR. English-speaking markets, particularly the U.S. and U.K., lead due to robust aerospace and automotive sectors. As shops embrace Industry 4.0, expect chamfer tools to integrate with AI-driven CAM systems for even smarter toolpaths.
Safety and Maintenance Best Practices for Chamfer Tools
Efficiency doesn’t mean cutting corners on safety or upkeep. Store chamfer tools in protective cases to prevent edge damage, and clean them after each shift to remove chips and coolant residue. Regular calibration of CNC machines ensures chamfers stay within tolerance—crucial for industries like medical devices, where precision is non-negotiable.
For safety, enforce a “no loose clothing” rule near CNC machines and train operators on emergency stop procedures. These habits keep your shop running smoothly and your team safe.
Conclusion
Chamfer tools may seem like small players in the CNC world, but their impact is massive. From slashing cycle times to enhancing part quality, they’re essential for staying competitive. By choosing the right tool, optimizing toolpaths, and embracing innovations like multifunctional designs and smart monitoring, you can unlock new levels of efficiency. The data speaks for itself: shops that master chamfer tool techniques report up to 25% faster finishing times and 15% lower costs. So, grab your chamfer tool, fine-tune your CNC setup, and let’s make those edges sing. Visit ‘want.net’ for more insights and tools to power your shop.
And if you’re curious to dig deeper, parts of this piece drew inspiration from an insightful article by the folks at chamfer-tool-essentials-boost-your-cnc-machining-efficiency, click here to explore more on how chamfer tools analysis are impacting manufacturing.
FAQ:
- What is a chamfer tool, and why is it important in CNC machining?
Answer: A chamfer tool is a specialized cutting tool used in CNC machining to create beveled edges or chamfers, typically at angles like 45° or 60°. It removes burrs, improves part aesthetics, and enhances assembly by guiding fasteners or reducing sharp edges. Chamfer tools boost efficiency by combining edge finishing with other operations, reducing secondary processing. For example, they can cut finishing times by up to 25% in industries like aerospace and automotive, making them essential for high-precision workflows.
- How do I choose the right chamfer tool for my CNC project?
Answer: Selecting a chamfer tool depends on material, chamfer angle, and production needs. For metals like aluminum, use carbide tools with coatings like TiAlN for durability. For plastics, high-speed steel (HSS) tools are cost-effective. Adjustable-angle tools are ideal for varied projects, while drill-chamfer combos streamline operations. Refer to the article’s selection guide (Table 2) to match tools to materials—e.g., a carbide chamfer mill for aluminum supports feed rates up to 1,500 mm/min.
- What are the best CNC programming tips for efficient chamfering?
Answer: Optimize chamfering with CAM software like Fusion 360 to design toolpaths that minimize air cutting. Set conservative depths of cut (0.1-0.5 mm per pass) and use climb milling for smoother finishes. For complex parts, 3D contouring can chamfer curved edges in one pass. The article notes that well-planned toolpaths can reduce cycle times by 20%, especially when paired with automatic tool changers (ATCs) for seamless operation.
- How can I reduce vibration when using a chamfer tool?
Answer: Vibration, or chatter, can degrade surface quality and tool life. To minimize it, reduce the number of flutes (e.g., from four to two) or adjust spindle speed to avoid resonance. Secure workpieces with vises to prevent movement. The article cites a 2023 study showing that optimized RPM can cut vibration-related tool wear by 30%. For example, using 6,000 RPM for stainless steel (Table 3) ensures stability.
- What are multifunctional chamfer tools, and how do they improve efficiency?
Answer: Multifunctional chamfer tools, like drill-chamfer combos, perform multiple tasks (e.g., drilling and chamfering) in one pass, reducing tool changes and cycle times. The article highlights that these tools can cut cycle times by 30% in high-volume production, such as automotive engine block machining. A 142°/90° double-angle drill, for instance, creates precise bolt hole chamfers without a second tool, streamlining workflows.
- How do I manage chips during chamfer tool operations?
Answer: Long, stringy chips can jam tools or mar surfaces. Use chamfer tools with chip-breaking geometries or apply “dwell machining” (pausing to break chips). The article notes that tools like Sandvik Coromant’s chamfer mills with chip breakers improve chip evacuation by 25% in steel machining. Adjust feed rates (e.g., 800 mm/min for stainless steel, Table 3) to control chip formation and maintain clean cuts.
- What maintenance practices extend chamfer tool life?
Answer: To prolong chamfer tool life, inspect for wear every 50 hours and replace indexable inserts promptly. Store tools in protective cases to prevent edge damage and clean them after each shift to remove chips and coolant residue. The article’s Table 2 shows that coated tools (e.g., TiAlN on carbide) can last up to 120 hours for aluminum. Regular CNC machine calibration also ensures consistent chamfer quality.
- Are there safety tips for using chamfer tools in CNC machining?
Answer: Safety is critical when using chamfer tools. Always wear protective goggles to shield against flying chips, secure workpieces with vises, and keep hands clear of spinning tools. Enforce a “no loose clothing” rule near CNC machines and train operators on emergency stop procedures. The article emphasizes these practices to prevent accidents and maintain a safe, efficient shop environment.
